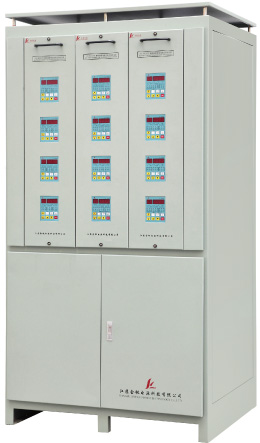

μC-3000GH、GHA Battery Formation Charger/Discharger
| Application: |
| Medium/large-capacity battery formation and battery pack charging/discharging. |
| Features: |
|
The equipment is based on special DC bus-bar patent technology which is taking IGBT as main circuit, it can directly make use of the discharging energy through rational charging/discharging action among several equipments. GH type specialized on DC bus-bar recovery, while GHA type specialized on energy recovery, it can make unwanted electricity back to AC grid, so GHA type has a more obvious energy-saving effect. With microprocessor-controlled HF charging/discharging technology, each circuit is controlled by a microprocessor, which having reliable, easy-operated and self-inspected functions, as well as low harmonic pollution, high power factor and stable output DC current. |
| Functions: |
| Setting and storing many formation modes and parameters of different types of battery. Providing the following operation modes: constant-current charging, constant-voltage charging, constant-voltage with current-limited charging, constant-current with voltage-limited discharging, cycling and pause; State shifting by time setting/voltage setting/Ah setting, recording operation data at setting time; Protecting against overcurrent, overvoltage and open circuit. Power off data logging, and automatic power on recovering; Protecting against battery anti-connection, over-discharging and output short circuit, and providing power off protection; Displaying on LED operation data and cause of troubles. Central network control and data processing when connected with PC via interface. |
| Technical Parameters: |
1. Charging Current: 0~100% rated charging current;
2. Discharging Current: 0~100% rated discharging current;
3. Range of Voltage Controlled: 10%~100% rated voltage;
4. Precision of current/voltage: ≤ 0.5% FS;
5. Time Precision: ≤15S/24H;
6. Electric Efficiency: >90％（when output load >30％）;
7. Efficiency of Discharging Energy Recovery: >95%
8. Power factor: >0.99 | |
 |
| |
| Specifications： |
| Models |
Output current |
Output voltage |
Circuits |
Size(cm) |
Weight(kg) |
| w |
h |
d |
| μC-3000GH、3000GHA 30A/60A/320V |
30A/60A |
320V
|
6、12 |
110 |
200 |
80 |
650-950 |
| μC-3000GH、3000GHA 40A/60A/320V |
40A/60A |
320V |
6、9 |
110 |
200 |
80 |
680-980 |
| μC-3000GH、3000GHA 50A/100A/320V |
50A/100A |
320V |
2、3 |
110 |
200 |
80 |
680-980 |
| μC-3000GH、3000GHA 100A/200A/320V |
100A/200A |
320V |
1 |
110 |
200 |
80 |
800 |
| μC-3000GH、3000GHA 150A/300A/320V |
150A/300A |
320V |
1 |
110 |
200 |
80 |
850 | |
