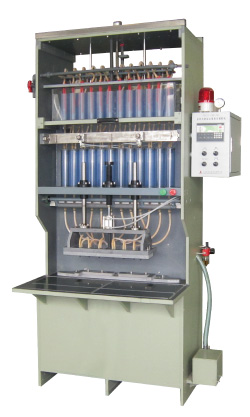

GJ21 Measuring Cup Volumetric Intelligent Gel Filling Machine (Vacuum Type)
| Application: |
| Precisely filling gel for all kinds of small/medium sealed batteries, and it is more suitable for those occasions where different types of batteries will be changed frequently. |
| Functions: |
| Pour the diluted gel (or send through pipes) into lower mixing tank (low speed mixing tank). Set filling quantity and other parameters, press Start button (Manual or Automatic, except 2V large battery), it will fill the gel automatically. |
| Features： |
| It takes microprocessor as controlling center. Set gel quantity and other parameters by control panel (Gel filling quantity can be adjusted automatically). The machine is made of engineering plastic and stainless steel. Key components adopt advanced anti-acid/anti-abrasion material from famous brands at home or abroad. It has features of high weighing precision, nice design, precise quantity setting, convenient adjusting, operation and maintenance, fast filling speed and so on. |
| Technical Parameters: |
1. Input Power: 3 phase AC380V, 50Hz, 2KW
2. Gas Source: 0.4-0.6Mpa, 0.1m³/min
3. Gel Filling Precision: ≤±1% F·S
4. Vacuum Pump Times: 1-9
5. Filling Speed: Small Capacity 6heads, 60-70pcs/h
Small Capacity, 12heads, about 90-120pcs/h
Medium Capacity 6heads, 40-60pcs/h
Medium Capacity, 12heads, 70-90pcs/h
| |
 |
| |
| Specifications： |
| Models |
Max. Filling Quantity for Each Cell |
Filling Cells |
Filling Method |
Applicable Battery |
| GJ21-100-6(12) |
30-100ml |
6(12) |
Vacuum Measuring Cup |
4-10Ah Sealed Battery |
| GJ21-250-6(8、12、16) |
40-250ml |
6(8、12、16) |
Vacuum Measuring Cup |
4-24Ah Sealed Battery |
| GJ21-500-6（12） |
90-500ml |
6（12） |
Vacuum Measuring Cup |
10-40Ah Sealed Battery |
| GJ21-1000-6(12) |
150-1000ml |
6(12) |
Vacuum Measuring Cup |
33-100Ah Sealed Battery |
| GJ21-2000-6(12) |
400-2000ml |
6(12) |
Vacuum Measuring Cup |
33-200Ah Sealed Battery |
| GJ21-5000-6 |
1000-5000ml |
6(2V) |
Vacuum Measuring Cup |
100-1000Ah Sealed Battery |
| GJ21-8000-6 |
1500-8000ml |
6(2V) |
Vacuum Measuring Cup |
100-1000Ah Sealed Battery | |
